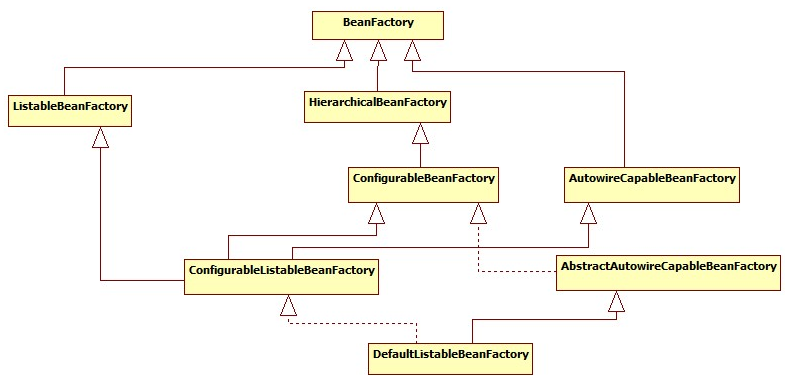

public interface BeanFactory {

 Object getBean(String name) throws BeansException;
 <T> T getBean(String name, @Nullable Class<T> requiredType) throws BeansException;
 Object getBean(String name, Object... args) throws BeansException;
 <T> T getBean(Class<T> requiredType) throws BeansException;
 boolean containsBean(String name);
 boolean isSingleton(String name) throws NoSuchBeanDefinitionException;
 boolean isPrototype(String name) throws NoSuchBeanDefinitionException;
 boolean isTypeMatch(String name, ResolvableType typeToMatch) throws NoSuchBeanDefinitionException;
 boolean isTypeMatch(String name, @Nullable Class<?> typeToMatch) throws NoSuchBeanDefinitionException;

 @Nullable
 Class<?> getType(String name) throws NoSuchBeanDefinitionException;
 String[] getAliases(String name);
}

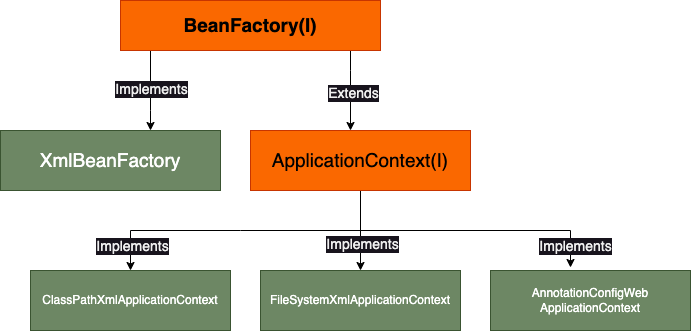

public class XmlBeanFactory extends DefaultListableBeanFactory {
 private final XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(this);

 public XmlBeanFactory(Resource resource) throws BeansException {
  this(resource, null);
 }
 public XmlBeanFactory(Resource resource, BeanFactory parentBeanFactory) throws BeansException {
  super(parentBeanFactory);
  this.reader.loadBeanDefinitions(resource);
 }
}

ApplicationContext =new FileSystemXmlApplicationContext(xmlPath);

public class FileSystemXmlApplicationContext extends AbstractXmlApplicationContext {
 public FileSystemXmlApplicationContext() {
 }

 public FileSystemXmlApplicationContext(ApplicationContext parent) {
  super(parent);
 }

 public FileSystemXmlApplicationContext(String configLocation) throws BeansException {
  this(new String[] {configLocation}, true, null);
 }


  public FileSystemXmlApplicationContext(String... configLocations) throws BeansException {
  this(configLocations, true, null);
 }

 public FileSystemXmlApplicationContext(String[] configLocations, ApplicationContext parent) throws BeansException {
  this(configLocations, true, parent);
 }

 public FileSystemXmlApplicationContext(String[] configLocations, boolean refresh) throws BeansException {
  this(configLocations, refresh, null);
 }

 public FileSystemXmlApplicationContext(String[] configLocations, boolean refresh, @Nullable ApplicationContext parent) throws BeansException {
  super(parent);
  setConfigLocations(configLocations);
  if (refresh) refresh();
 }
 protected Resource getResourceByPath(String path) {
  if (path.startsWith("/")) {
   path = path.substring(1);
  }
  return new FileSystemResource(path);
 }
}

public FileSystemXmlApplicationContext(String[] configLocations, boolean refresh, @Nullable ApplicationContext parent) throws BeansException {
 super(parent);
 setConfigLocations(configLocations);
 if (refresh) refresh();
}
protected Resource getResourceByPath(String path) {
 if (path.startsWith("/")) {
  path = path.substring(1);
 }
 return new FileSystemResource(path);
}

public abstract class AbstractApplicationContext extends DefaultResourceLoader
  implements ConfigurableApplicationContext {
    //静态初始化块，在整个容器创建过程中只执行一次
    static {
    // Eagerly load the ContextClosedEvent class to avoid weird classloader issues
    // on application shutdown in WebLogic 8.1. (Reported by Dustin Woods.)
    ContextClosedEvent.class.getName();
   }
    //AbstractApplicationContext构造方法中调用PathMatchingResourcePatternResolver的构造方法创建Spring资源加载器
   public AbstractApplicationContext() {
    this.resourcePatternResolver = getResourcePatternResolver();
   }
    //FileSystemXmlApplicationContext调用父类构造方法调用的就是该方法
   public AbstractApplicationContext(@Nullable ApplicationContext parent) {
    this();
    setParent(parent);
   }
  //获取一个Spring Source的加载器用于读入Spring Bean定义资源文件
    protected ResourcePatternResolver getResourcePatternResolver() {
      return new PathMatchingResourcePatternResolver(this);
    }

    @Override
    public void setParent(@Nullable ApplicationContext parent) {
      this.parent = parent;
      if (parent != null) {
        Environment parentEnvironment = parent.getEnvironment();
        if (parentEnvironment instanceof ConfigurableEnvironment)
          getEnvironment().merge((ConfigurableEnvironment) parentEnvironment);
      }
    }
}

public void setConfigLocations(@Nullable String... locations) {
  if (locations != null) {
    Assert.noNullElements(locations, "Config locations must not be null");
    this.configLocations = new String[locations.length];
    for (int i = 0; i < locations.length; i++) {
      this.configLocations[i] = resolvePath(locations[i]).trim();
    }
  }
  else {
    this.configLocations = null;
  }
}

  protected String resolvePath(String path) {
    return getEnvironment().resolveRequiredPlaceholders(path);
  }

  public ConfigurableEnvironment getEnvironment() {
    if (this.environment == null) {
      this.environment = createEnvironment();
    }
    return this.environment;
  }
  protected ConfigurableEnvironment createEnvironment() {
    return new StandardEnvironment();
  }

}

public void refresh() throws BeansException, IllegalStateException {
  synchronized (this.startupShutdownMonitor) {
    // Prepare this context for refreshing.
    prepareRefresh();

    // Tell the subclass to refresh the internal bean factory.
    ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

    // Prepare the bean factory for use in this context.
    prepareBeanFactory(beanFactory);

    try {
      // Allows post-processing of the bean factory in context subclasses.
      postProcessBeanFactory(beanFactory);
      // Invoke factory processors registered as beans in the context.
      invokeBeanFactoryPostProcessors(beanFactory);
      // Register bean processors that intercept bean creation.
      registerBeanPostProcessors(beanFactory);
      // Initialize message source for this context.
      initMessageSource();
      // Initialize event multicaster for this context.
      initApplicationEventMulticaster();
      // Initialize other special beans in specific context subclasses.
      onRefresh();
      // Check for listener beans and register them.
      registerListeners();
      // Instantiate all remaining (non-lazy-init) singletons.
      finishBeanFactoryInitialization(beanFactory);
      // Last step: publish corresponding event.
      finishRefresh();
    }
    catch (BeansException ex) {
      if (logger.isWarnEnabled())
        logger.warn("Exception encountered during context initialization - "
          - "cancelling refresh attempt: " + ex);
      // Destroy already created singletons to avoid dangling resources.
      destroyBeans();
      // Reset 'active' flag.
      cancelRefresh(ex);
      // Propagate exception to caller.
      throw ex;
    }
    finally {
      // Reset common introspection caches in Spring's core, since we
      // might not ever need metadata for singleton beans anymore...
      resetCommonCaches();
    }
  }
}

protected void prepareRefresh() {
  this.startupDate = System.currentTimeMillis();
  this.closed.set(false);
  this.active.set(true);
  if (logger.isInfoEnabled())logger.info("Refreshing " + this);

  // Initialize any placeholder property sources in the context environment
  initPropertySources();
  // Validate that all properties marked as required are resolvable
  // see ConfigurablePropertyResolver#setRequiredProperties
  getEnvironment().validateRequiredProperties();
  // Allow for the collection of early ApplicationEvents,
  // to be published once the multicaster is available...
  this.earlyApplicationEvents = new LinkedHashSet<>();
}

//Tell the subclass to refresh the internal bean factory.
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
  //这里使用了委派设计模式，父类定义了抽象的refreshBeanFactory()方法，具体实现调用子类容器的refreshBeanFactory()方法
  refreshBeanFactory();
  ConfigurableListableBeanFactory beanFactory = getBeanFactory();
  if (logger.isDebugEnabled()) {
    logger.debug("Bean factory for " + getDisplayName() + ": " + beanFactory);
  }
  return beanFactory;
}

/**
 * This implementation performs an actual refresh of this context's underlying
 * bean factory, shutting down the previous bean factory (if any) and
 * initializing a fresh bean factory for the next phase of the context's lifecycle.
 */
@Override
protected final void refreshBeanFactory() throws BeansException {
  if (hasBeanFactory()) {
    //Template method for destroying all beans that this context manages.
    destroyBeans();
    closeBeanFactory();
  }
  try {
    DefaultListableBeanFactory beanFactory = createBeanFactory();
    beanFactory.setSerializationId(getId());
    customizeBeanFactory(beanFactory);
    loadBeanDefinitions(beanFactory);
    synchronized (this.beanFactoryMonitor) {
      this.beanFactory = beanFactory;
    }
  }
  catch (IOException ex) {
    throw new ApplicationContextException("I/O error parsing bean definition source for " + getDisplayName(), ex);
  }
}

@Override
protected final void closeBeanFactory() {
  synchronized (this.beanFactoryMonitor) {
    if (this.beanFactory != null)
      this.beanFactory.setSerializationId(null);
      this.beanFactory = null;
  }
}
protected DefaultListableBeanFactory createBeanFactory() {
  return new DefaultListableBeanFactory(getInternalParentBeanFactory());
}
protected void customizeBeanFactory(DefaultListableBeanFactory beanFactory) {
  if (this.allowBeanDefinitionOverriding != null) {
    beanFactory.setAllowBeanDefinitionOverriding(this.allowBeanDefinitionOverriding);
  }
  if (this.allowCircularReferences != null) {
    beanFactory.setAllowCircularReferences(this.allowCircularReferences);
  }
}

//Loads the bean definitions via an XmlBeanDefinitionReader.
@Override

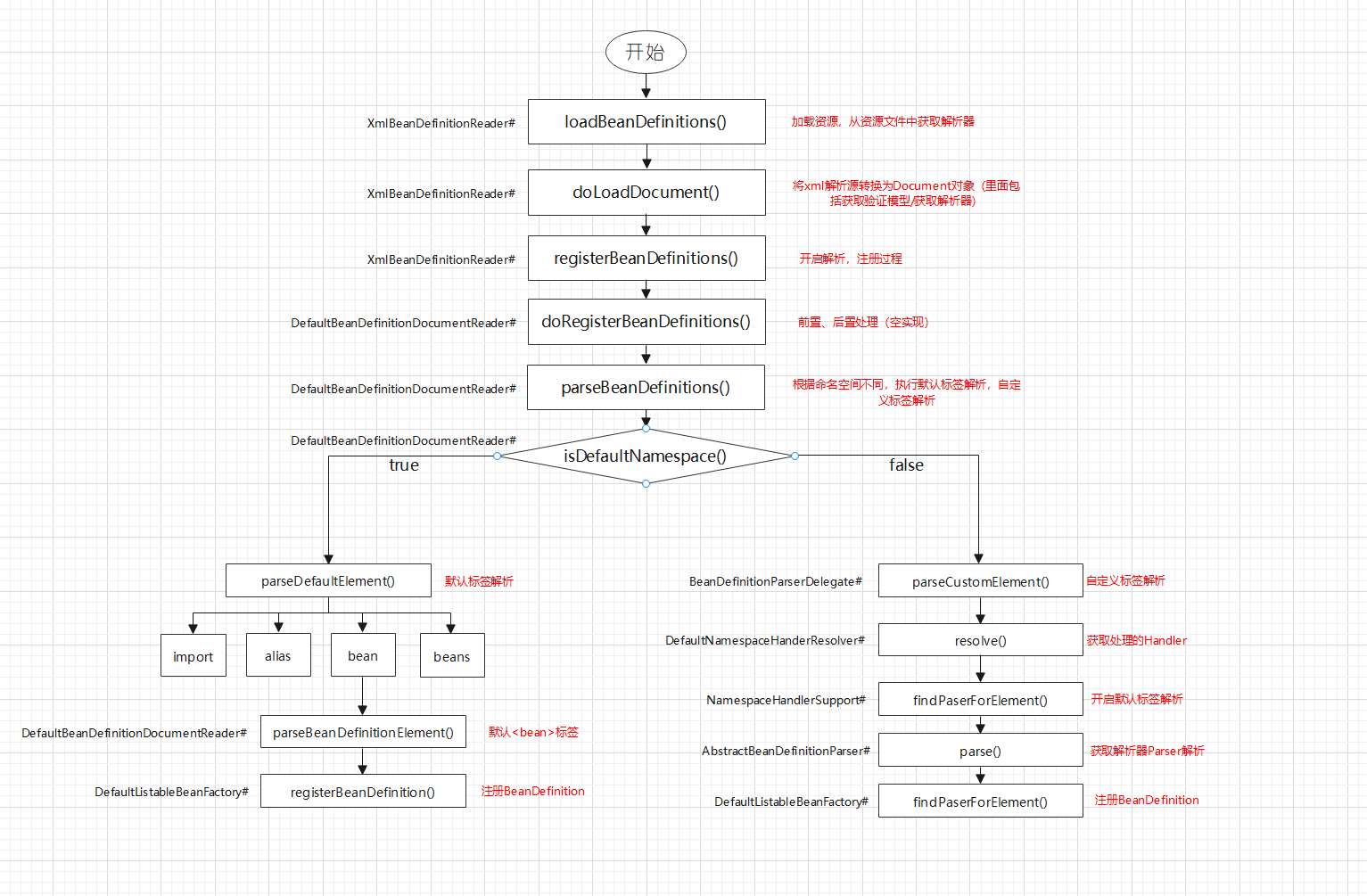

protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
  // Create a new XmlBeanDefinitionReader for the given BeanFactory.
  XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);

  // Configure the bean definition reader with this context's
  // resource loading environment.
  beanDefinitionReader.setEnvironment(this.getEnvironment());

  //祖先父类AbstractApplicationContext继承DefaultResourceLoader，因此，容器本身也是一个资源加载器
  beanDefinitionReader.setResourceLoader(this);
   //为Bean读取器设置SAX xml解析器
  beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));

  // Allow a subclass to provide custom initialization of the reader,
  // then proceed with actually loading the bean definitions.
  initBeanDefinitionReader(beanDefinitionReader);
  //Bean读取器真正实现加载的方法
  loadBeanDefinitions(beanDefinitionReader);
}

//Load the bean definitions with the given XmlBeanDefinitionReader.
protected void loadBeanDefinitions(XmlBeanDefinitionReader reader) throws BeansException, IOException {
  Resource[] configResources = getConfigResources();
  if (configResources != null) {
    reader.loadBeanDefinitions(configResources);
  }
  //如果子类中获取的Bean定义资源定位为空，则获取FileSystemXmlApplicationContext构造方法中setConfigLocations方法设置的资源
  String[] configLocations = getConfigLocations();
  if (configLocations != null) {
    reader.loadBeanDefinitions(configLocations);
  }
}

//这里又使用了一个委托模式，调用子类的获取Bean定义资源定位的方法。
//该方法在ClassPathXmlApplicationContext中进行实现，的FileSystemXmlApplicationContext没有使用该方法。
@Nullable
protected Resource[] getConfigResources() {
  return null;
}

public abstract class AbstractBeanDefinitionReader implements EnvironmentCapable, BeanDefinitionReader {

  public int loadBeanDefinitions(String... locations) throws BeanDefinitionStoreException {
  Assert.notNull(locations, "Location array must not be null");
  int counter = 0;
  for (String location : locations) {
   counter += loadBeanDefinitions(location);
  }
  return counter;
 }

  public int loadBeanDefinitions(String location) throws BeanDefinitionStoreException {
  return loadBeanDefinitions(location, null);
 }
  public int loadBeanDefinitions(String location, @Nullable Set<Resource> actualResources) throws BeanDefinitionStoreException {
  ResourceLoader resourceLoader = getResourceLoader();
  if (resourceLoader == null) {
   throw new BeanDefinitionStoreException(
     "Cannot import bean definitions from location [" + location + "]: no ResourceLoader available");
  }

  if (resourceLoader instanceof ResourcePatternResolver) {
   // Resource pattern matching available.
   try {
    Resource[] resources = ((ResourcePatternResolver) resourceLoader).getResources(location);
    int loadCount = loadBeanDefinitions(resources);
    if (actualResources != null) {
     for (Resource resource : resources) {
      actualResources.add(resource);
     }
    }
    if (logger.isDebugEnabled()) {
     logger.debug("Loaded " + loadCount + " bean definitions from location pattern [" + location + "]");
    }
    return loadCount;
   }
   catch (IOException ex) {
    throw new BeanDefinitionStoreException(
      "Could not resolve bean definition resource pattern [" + location + "]", ex);
   }
  }
  else {
   // Can only load single resources by absolute URL.
   Resource resource = resourceLoader.getResource(location);
   int loadCount = loadBeanDefinitions(resource);
   if (actualResources != null) {
    actualResources.add(resource);
   }
   if (logger.isDebugEnabled()) {
    logger.debug("Loaded " + loadCount + " bean definitions from location [" + location + "]");
   }
   return loadCount;
  }
 }

}

public class XmlBeanDefinitionReader extends AbstractBeanDefinitionReader {
    protected int doLoadBeanDefinitions(InputSource inputSource, Resource resource)
        throws BeanDefinitionStoreException {
      try {
        Document doc = doLoadDocument(inputSource, resource);
        return registerBeanDefinitions(doc, resource);
      }
      catch (Exception ex) {
        ...
      }
    }

    protected Document doLoadDocument(InputSource inputSource, Resource resource) throws Exception {
    return this.documentLoader.loadDocument(inputSource, getEntityResolver(), this.errorHandler,
      getValidationModeForResource(resource), isNamespaceAware());
   }
}

public class DefaultDocumentLoader implements DocumentLoader {
  //使用标准的JAXP将载入的Bean定义资源转换成document对象
 public Document loadDocument(InputSource inputSource, EntityResolver entityResolver,
   ErrorHandler errorHandler, int validationMode, boolean namespaceAware) throws Exception {

//创建文件解析器工厂
  DocumentBuilderFactory factory = createDocumentBuilderFactory(validationMode, namespaceAware);
  if (logger.isDebugEnabled()) {
   logger.debug("Using JAXP provider [" + factory.getClass().getName() + "]");
  }
    //创建文档解析器
  DocumentBuilder builder = createDocumentBuilder(factory, entityResolver, errorHandler);
    //解析Spring的Bean定义资源
  return builder.parse(inputSource);
 }

  protected DocumentBuilderFactory createDocumentBuilderFactory(int validationMode, boolean namespaceAware)
   throws ParserConfigurationException {
//创建文档解析工厂
  DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();
  factory.setNamespaceAware(namespaceAware);
      //设置解析XML的校验
  if (validationMode ! = XmlValidationModeDetector.VALIDATION_NONE) {
   factory.setValidating(true);
   if (validationMode == XmlValidationModeDetector.VALIDATION_XSD) {
    // Enforce namespace aware for XSD...
    factory.setNamespaceAware(true);
    try {
     factory.setAttribute(SCHEMA_LANGUAGE_ATTRIBUTE, XSD_SCHEMA_LANGUAGE);
    }
    catch (IllegalArgumentException ex) {
     ParserConfigurationException pcex = new ParserConfigurationException(
       "Unable to validate using XSD: Your JAXP provider [" + factory +
       "] does not support XML Schema. Are you running on Java 1.4 with Apache Crimson? " +
       "Upgrade to Apache Xerces (or Java 1.5) for full XSD support.");
     pcex.initCause(ex);
     throw pcex;
    }
   }
  }
 }
}

public class XmlBeanDefinitionReader extends AbstractBeanDefinitionReader {

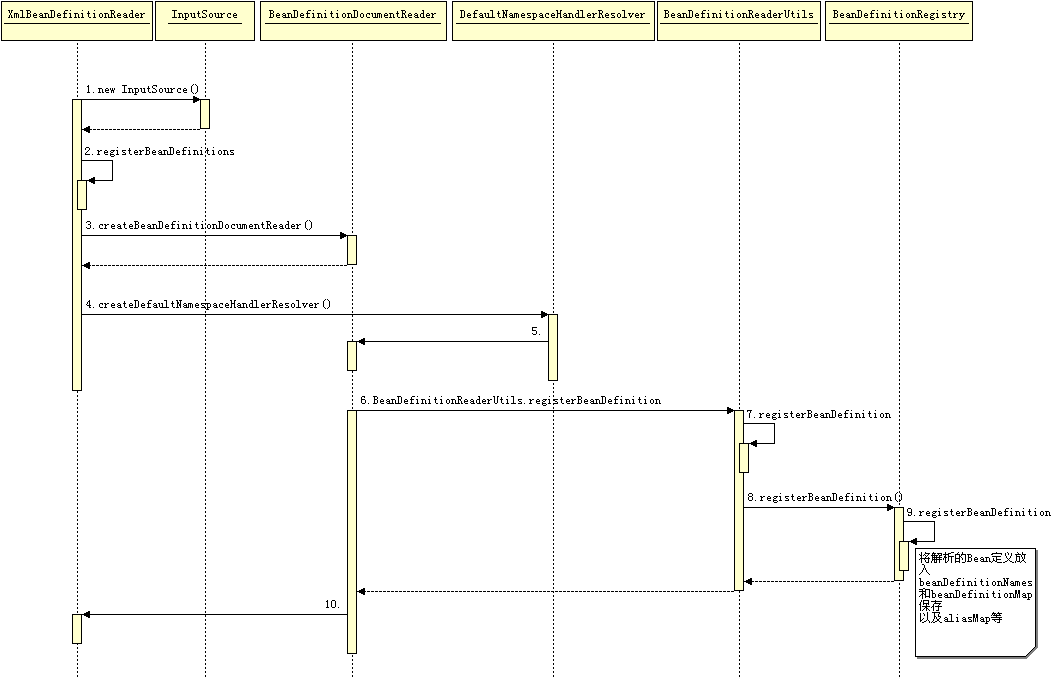

    public int registerBeanDefinitions(Document doc, Resource resource) throws BeanDefinitionStoreException {
      BeanDefinitionDocumentReader documentReader = createBeanDefinitionDocumentReader();
      int countBefore = getRegistry().getBeanDefinitionCount();
      documentReader.registerBeanDefinitions(doc, createReaderContext(resource));
      return getRegistry().getBeanDefinitionCount() - countBefore;
    }
    protected BeanDefinitionDocumentReader createBeanDefinitionDocumentReader() {
      return BeanDefinitionDocumentReader.class.cast(BeanUtils.instantiateClass(this.documentReaderClass));
    }
    private Class<?> documentReaderClass = DefaultBeanDefinitionDocumentReader.class;
}

public class DefaultBeanDefinitionDocumentReader implements BeanDefinitionDocumentReader {


  public void registerBeanDefinitions(Document doc, XmlReaderContext readerContext) {
    //获得XML描述符
    this.readerContext = readerContext;
    logger.debug("Loading bean definitions");
    //获得Document的根元素
    Element root = doc.getDocumentElement();

    doRegisterBeanDefinitions(root);
  }
  protected void doRegisterBeanDefinitions(Element root) {
  // Any nested <beans> elements will cause recursion in this method. In
  // order to propagate and preserve <beans> default-* attributes correctly,
  // keep track of the current (parent) delegate, which may be null. Create
  // the new (child) delegate with a reference to the parent for fallback purposes,
  // then ultimately reset this.delegate back to its original (parent) reference.
  // this behavior emulates a stack of delegates without actually necessitating one.

  BeanDefinitionParserDelegate parent = this.delegate;
  this.delegate = createDelegate(getReaderContext(), root, parent);

  if (this.delegate.isDefaultNamespace(root)) {
   String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
   if (StringUtils.hasText(profileSpec)) {
    String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
      profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
    if (!getReaderContext().getEnvironment().acceptsProfiles(specifiedProfiles)) {
     if (logger.isInfoEnabled()) {
      logger.info("Skipped XML bean definition file due to specified profiles [" + profileSpec +
        "] not matching: " + getReaderContext().getResource());
     }
     return;
    }
   }
  }
//在解析Bean定义之前，进行自定义的解析，增强解析过程的可扩展性
  preProcessXml(root);
//从Document的根元素开始进行Bean定义的Document对象
  parseBeanDefinitions(root, this.delegate);
//在解析Bean定义之后，进行自定义的解析，增加解析过程的可扩展性
  postProcessXml(root);

  this.delegate = parent;
 }
  //使用Spring的Bean规则从Document的根元素开始进行Bean定义的Document对象
  protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
    if (delegate.isDefaultNamespace(root)) {
     NodeList nl = root.getChildNodes();
     for (int i = 0; i < nl.getLength(); i++) {
      Node node = nl.item(i);
      if (node instanceof Element) {
       Element ele = (Element) node;
       if (delegate.isDefaultNamespace(ele)) {
        parseDefaultElement(ele, delegate);
       }
       else {
        delegate.parseCustomElement(ele);
       }
      }
     }
    }
    else {
     delegate.parseCustomElement(root);
    }
   }
//使用Spring的Bean规则解析Document元素节点
   private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
    if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
     importBeanDefinitionResource(ele);
    }
    else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
     processAliasRegistration(ele);
    }
    else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
     processBeanDefinition(ele, delegate);
    }
    else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
     // recurse
     doRegisterBeanDefinitions(ele);
    }
   }

   /**
    * Parse an "import" element and load the bean definitions
    * from the given resource into the bean factory.
    */
   protected void importBeanDefinitionResource(Element ele) {
    String location = ele.getAttribute(RESOURCE_ATTRIBUTE);
    if (!StringUtils.hasText(location)) {
     getReaderContext().error("Resource location must not be empty", ele);
     return;
    }

    // Resolve system properties: e.g. "${user.dir}"
    location = getReaderContext().getEnvironment().resolveRequiredPlaceholders(location);

    Set<Resource> actualResources = new LinkedHashSet<Resource>(4);

    // Discover whether the location is an absolute or relative URI
    boolean absoluteLocation = false;
    try {
     absoluteLocation = ResourcePatternUtils.isUrl(location) || ResourceUtils.toURI(location).isAbsolute();
    }
    catch (URISyntaxException ex) {
     // cannot convert to an URI, considering the location relative
     // unless it is the well-known Spring prefix "classpath*:"
    }

    // Absolute or relative?
    if (absoluteLocation) {
     try {
      int importCount = getReaderContext().getReader().loadBeanDefinitions(location, actualResources);
      if (logger.isDebugEnabled()) {
       logger.debug("Imported " + importCount + " bean definitions from URL location [" + location + "]");
      }
     }
     catch (BeanDefinitionStoreException ex) {
      getReaderContext().error(
        "Failed to import bean definitions from URL location [" + location + "]", ele, ex);
     }
    }
    else {
     // No URL -> considering resource location as relative to the current file.
     try {
      int importCount;
      Resource relativeResource = getReaderContext().getResource().createRelative(location);
      if (relativeResource.exists()) {
       importCount = getReaderContext().getReader().loadBeanDefinitions(relativeResource);
       actualResources.add(relativeResource);
      }
      else {
       String baseLocation = getReaderContext().getResource().getURL().toString();
       importCount = getReaderContext().getReader().loadBeanDefinitions(
         StringUtils.applyRelativePath(baseLocation, location), actualResources);
      }
      if (logger.isDebugEnabled()) {
       logger.debug("Imported " + importCount + " bean definitions from relative location [" + location + "]");
      }
     }
     catch (IOException ex) {
      getReaderContext().error("Failed to resolve current resource location", ele, ex);
     }
     catch (BeanDefinitionStoreException ex) {
      getReaderContext().error("Failed to import bean definitions from relative location [" + location + "]",
        ele, ex);
     }
    }
    Resource[] actResArray = actualResources.toArray(new Resource[actualResources.size()]);
    getReaderContext().fireImportProcessed(location, actResArray, extractSource(ele));
   }

   /**
    * Process the given alias element, registering the alias with the registry.
    */
   protected void processAliasRegistration(Element ele) {
      ...
   }

   protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
    BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
    if (bdHolder != null) {
     bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
     try {
      // Register the final decorated instance.
      BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
     }
     catch (BeanDefinitionStoreException ex) {
      getReaderContext().error("Failed to register bean definition with name '" +
        bdHolder.getBeanName() + "'", ele, ex);
     }
     // Send registration event.
     getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
    }
   }

}

/**
 * Parses the supplied {@code <bean>} element. May return {@code null}
 * if there were errors during parse. Errors are reported to the
 * {@link org.springframework.beans.factory.parsing.ProblemReporter}.
 */
public BeanDefinitionHolder parseBeanDefinitionElement(Element ele) {
  return parseBeanDefinitionElement(ele, null);
}
public BeanDefinitionHolder parseBeanDefinitionElement(Element ele, BeanDefinition containingBean) {
  String id = ele.getAttribute(ID_ATTRIBUTE);
  String nameAttr = ele.getAttribute(NAME_ATTRIBUTE);

  List<String> aliases = new ArrayList<String>();
  if (StringUtils.hasLength(nameAttr)) {
    String[] nameArr = StringUtils.tokenizeToStringArray(nameAttr, MULTI_VALUE_ATTRIBUTE_DELIMITERS);
    aliases.addAll(Arrays.asList(nameArr));
  }

  String beanName = id;
  if (!StringUtils.hasText(beanName) && !aliases.isEmpty()) {
    beanName = aliases.remove(0);
    if (logger.isDebugEnabled()) {
      logger.debug("No XML 'id' specified - using '" + beanName +
          "' as bean name and " + aliases + " as aliases");
    }
  }

  if (containingBean == null) {
    checkNameUniqueness(beanName, aliases, ele);
  }

  AbstractBeanDefinition beanDefinition = parseBeanDefinitionElement(ele, beanName, containingBean);
  if (beanDefinition != null) {
    if (!StringUtils.hasText(beanName)) {
      try {
        if (containingBean != null) {
          beanName = BeanDefinitionReaderUtils.generateBeanName(
              beanDefinition, this.readerContext.getRegistry(), true);
        }
        else {
          beanName = this.readerContext.generateBeanName(beanDefinition);
          // Register an alias for the plain bean class name, if still possible,
          // if the generator returned the class name plus a suffix.
          // This is expected for Spring 1.2/2.0 backwards compatibility.
          String beanClassName = beanDefinition.getBeanClassName();
          if (beanClassName != null &&
              beanName.startsWith(beanClassName) && beanName.length() > beanClassName.length() &&
              !this.readerContext.getRegistry().isBeanNameInUse(beanClassName)) {
            aliases.add(beanClassName);
          }
        }
        if (logger.isDebugEnabled()) {
          logger.debug("Neither XML 'id' nor 'name' specified - " +
              "using generated bean name [" + beanName + "]");
        }
      }
      catch (Exception ex) {
        error(ex.getMessage(), ele);
        return null;
      }
    }
    String[] aliasesArray = StringUtils.toStringArray(aliases);
    return new BeanDefinitionHolder(beanDefinition, beanName, aliasesArray);
  }

  return null;
}
public AbstractBeanDefinition parseBeanDefinitionElement(
    Element ele, String beanName, BeanDefinition containingBean) {

  this.parseState.push(new BeanEntry(beanName));

  String className = null;
  if (ele.hasAttribute(CLASS_ATTRIBUTE)) {
    className = ele.getAttribute(CLASS_ATTRIBUTE).trim();
  }

  try {
    String parent = null;
    if (ele.hasAttribute(PARENT_ATTRIBUTE)) {
      parent = ele.getAttribute(PARENT_ATTRIBUTE);
    }
    //根据<Bean>元素配置的class名称和parent属性值创建BeanDefinition
    //为载入Bean定义信息做准备
    AbstractBeanDefinition bd = createBeanDefinition(className, parent);
    //对当前的<Bean>元素中配置的一些属性进行解析和设置，如配置的单态(singleton)属性等
    parseBeanDefinitionAttributes(ele, beanName, containingBean, bd);
    //为<Bean>元素解析的Bean设置description信息
    bd.setDescription(DomUtils.getChildElementValueByTagName(ele, DESCRIPTION_ELEMENT));

    //对<Bean>元素的meta(元信息)属性解析
    parseMetaElements(ele, bd);
    //对<Bean>元素的lookup-method属性解析
    parseLookupOverrideSubElements(ele, bd.getMethodOverrides());
    //对<Bean>元素的replaced-method属性解析
    parseReplacedMethodSubElements(ele, bd.getMethodOverrides());
    //解析<Bean>元素的构造方法设置

    parseConstructorArgElements(ele, bd);
    //解析<Bean>元素的<property>设置
    parsePropertyElements(ele, bd);
    //解析<Bean>元素的qualifier属性
    parseQualifierElements(ele, bd);
    //为当前解析的Bean设置所需的资源和依赖对象
    bd.setResource(this.readerContext.getResource());
    bd.setSource(extractSource(ele));

    return bd;
  }
  catch (ClassNotFoundException ex) {
    error("Bean class [" + className + "] not found", ele, ex);
  }
  catch (NoClassDefFoundError err) {
    error("Class that bean class [" + className + "] depends on not found", ele, err);
  }
  catch (Throwable ex) {
    error("Unexpected failure during bean definition parsing", ele, ex);
  }
  finally {
    this.parseState.pop();
  }

  return null;
}

//解析<Bean>元素中的<property>子元素
   public void parsePropertyElements(Element beanEle, BeanDefinition bd) {
       //获取<Bean>元素中所有的子元素
       NodeList nl = beanEle.getChildNodes();
       for (int i = 0; i < nl.getLength(); i++) {
           Node node = nl.item(i);
           //如果子元素是<property>子元素，则调用解析<property>子元素方法解析
           if (isCandidateElement(node) && nodeNameEquals(node, PROPERTY_ELEMENT)) {
               parsePropertyElement((Element) node, bd);
           }
       }
   }
   //解析<property>元素
   public void parsePropertyElement(Element ele, BeanDefinition bd) {
       //获取<property>元素的名字
       String propertyName = ele.getAttribute(NAME_ATTRIBUTE);
       if (!StringUtils.hasLength(propertyName)) {
           error("Tag 'property' must have a 'name' attribute", ele);
           return;
       }
       this.parseState.push(new PropertyEntry(propertyName));
       try {
           //如果一个Bean中已经有同名的property存在，则不进行解析，直接返回。
           //即如果在同一个Bean中配置同名的property，则只有第一个起作用
           if (bd.getPropertyValues().contains(propertyName)) {
               error("Multiple 'property' definitions for property '" + propertyName + "'", ele);
               return;
           }
           //解析获取property的值
           Object val = parsePropertyValue(ele, bd, propertyName);
           //根据property的名字和值创建property实例
           PropertyValue pv = new PropertyValue(propertyName, val);
           //解析<property>元素中的属性
           parseMetaElements(ele, pv);
           pv.setSource(extractSource(ele));
           bd.getPropertyValues().addPropertyValue(pv);
       }
       finally {
           this.parseState.pop();
       }
   }
   //解析获取property值
   public Object parsePropertyValue(Element ele, BeanDefinition bd, String propertyName) {
       String elementName = (propertyName != null) ?
                       "<property> element for property '" + propertyName + "'" :
                       "<constructor-arg> element";
       //获取<property>的所有子元素，只能是其中一种类型:ref,value,list等
       NodeList nl = ele.getChildNodes();
       Element subElement = null;
       for (int i = 0; i < nl.getLength(); i++) {
           Node node = nl.item(i);
           //子元素不是description和meta属性
           if (node instanceof Element && !nodeNameEquals(node, DESCRIPTION_ELEMENT) &&
                   !nodeNameEquals(node, META_ELEMENT)) {
               if (subElement != null) {
                   error(elementName + " must not contain more than one sub-element", ele);
               }
               else {//当前<property>元素包含有子元素
                   subElement = (Element) node;
               }
           }
       }
       //判断property的属性值是ref还是value，不允许既是ref又是value
       boolean hasRefAttribute = ele.hasAttribute(REF_ATTRIBUTE);
       boolean hasValueAttribute = ele.hasAttribute(VALUE_ATTRIBUTE);
       if ((hasRefAttribute && hasValueAttribute) ||
               ((hasRefAttribute || hasValueAttribute) && subElement != null)) {
           error(elementName +
                   " is only allowed to contain either 'ref' attribute OR 'value' attribute OR sub-element", ele);
       }
       //如果属性是ref，创建一个ref的数据对象RuntimeBeanReference，这个对象
       //封装了ref信息
       if (hasRefAttribute) {
           String refName = ele.getAttribute(REF_ATTRIBUTE);
           if (!StringUtils.hasText(refName)) {
               error(elementName + " contains empty 'ref' attribute", ele);
           }
           //一个指向运行时所依赖对象的引用
           RuntimeBeanReference ref = new RuntimeBeanReference(refName);
           //设置这个ref的数据对象是被当前的property对象所引用
           ref.setSource(extractSource(ele));
           return ref;
       }
        //如果属性是value，创建一个value的数据对象TypedStringValue，这个对象
       //封装了value信息
       else if (hasValueAttribute) {
           //一个持有String类型值的对象
           TypedStringValue valueHolder = new TypedStringValue(ele.getAttribute(VALUE_ATTRIBUTE));
           //设置这个value数据对象是被当前的property对象所引用
           valueHolder.setSource(extractSource(ele));
           return valueHolder;
       }
       //如果当前<property>元素还有子元素
       else if (subElement != null) {
           //解析<property>的子元素
           return parsePropertySubElement(subElement, bd);
       }
       else {
           //propery属性中既不是ref，也不是value属性，解析出错返回null        error(elementName + " must specify a ref or value", ele);
           return null;
       }
    }
